# Technical Overview

### Introduction

Ludi is a dynamic, real-time application providing users with a rich interactive environment to work collaboratively. It is primarily deployed into a virtual private cloud operated by Deqo Software Ltd and provided in the form of Software as a Service.

This article describes the architecture of Ludi. See our [Security](https://ludi.co/security) and [Privacy Policy](https://ludi.co/privacy) pages for more information on our security and data protection practices.

### Logical Topology

Ludi is exposed to customers as a [single page web application](https://en.wikipedia.org/wiki/Single-page_application). Behind this, there are a number of services working in synergy to provide a working service. From a logical perspective (ignoring hardware), these are:

<table><thead><tr><th>Service</th><th width="354">Product / Provider</th><th width="150">Role</th></tr></thead><tbody><tr><td>Web Gateway</td><td>Caddy</td><td>Acts as reverse proxy and load balancer.</td></tr><tr><td>Content Delivery Network</td><td>BunnyCDN</td><td>Provides edge cache for static assets &#x26; SPA build files.</td></tr><tr><td>App Server</td><td>NodeJS Application</td><td>Application API (HTTP based) and Auth/Login UI.</td></tr><tr><td>Podopolis</td><td>Elixir Application</td><td>Socket server that enables the real time collaboration functionality.</td></tr><tr><td>Main Database</td><td>Postgres</td><td>Stores all system data except for board contents.</td></tr><tr><td>Object Database</td><td>MongoDB</td><td>Stores board contents.</td></tr><tr><td>Cache</td><td>Redis</td><td>Provides a cache and short term storage solution.</td></tr><tr><td>Message Queue</td><td>Rabbit MQ</td><td>Enables inter-service communication between components.</td></tr><tr><td>File Store</td><td>S3 Compatible Storage</td><td>Stores static assets &#x26; user uploaded data.</td></tr><tr><td>App Worker</td><td>NodeJS Application</td><td>Background job processor for various system tasks/functionality.</td></tr><tr><td>Snapper</td><td>NodeJS Application</td><td>Generates board preview images via Puppeteer.</td></tr></tbody></table>

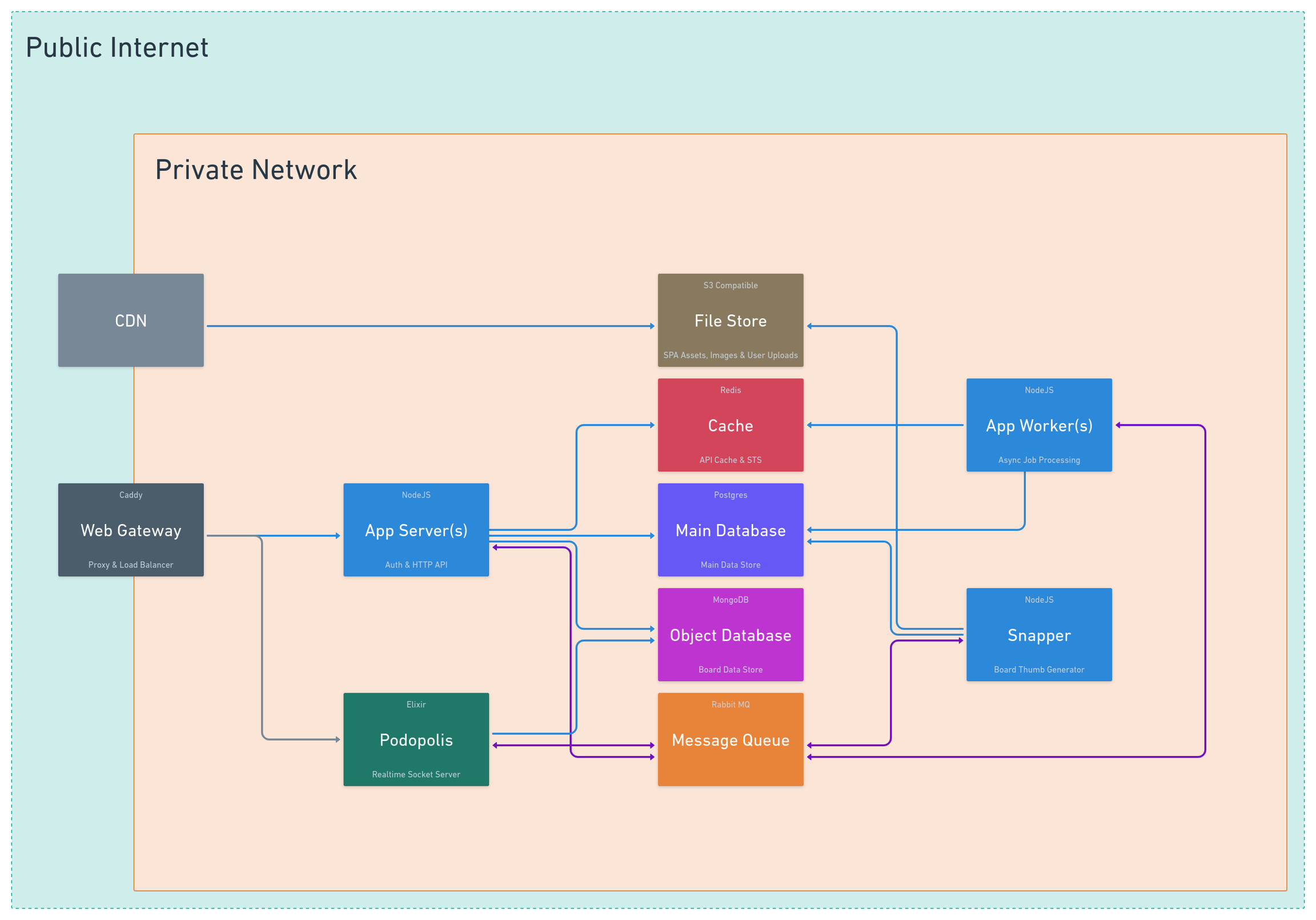

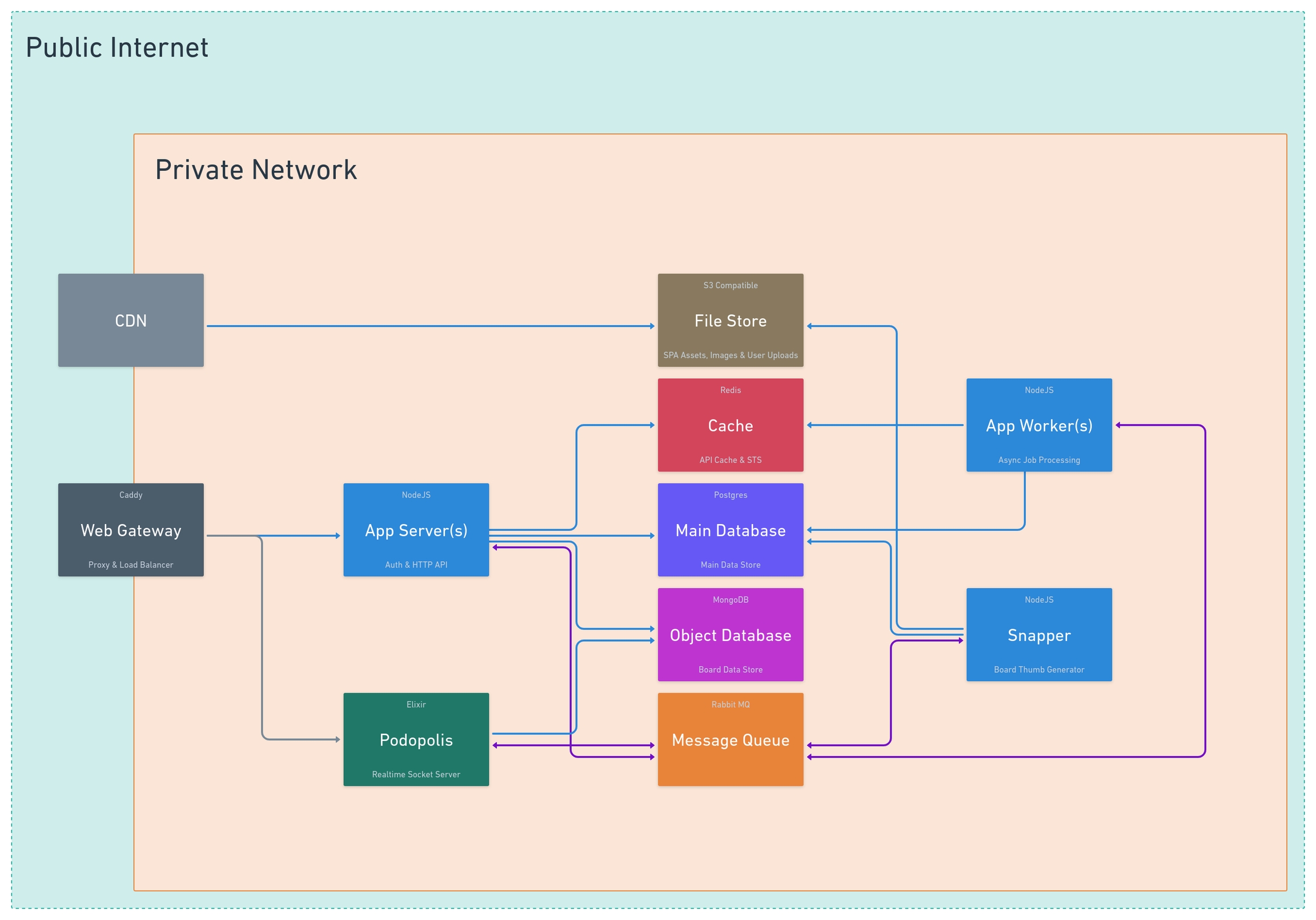

The diagram below shows the logical topology layout including the data transfer routes. Blue lines are one way transfers, purple lines are bi-directional transfers.

![](/files/5pH1ZWNy07HD5zgHUvFp)

### Physical Topology

#### Cloud Deployment

Within the main cloud deployment, we utilize Digital Ocean with the following:

* Ubuntu VMs for App Server, App Worker, Snapper, Podopolis, Rabbit MQ, Redis & Caddy
* Digital Ocean Managed Postgres & MongoDB instances
* Digital Ocean Spaces (S3 Compatible Storage)
* Bunny CDN as the external CDN provider

Each component runs directly on a dedicated VM of a size applicable for the current system load.


---
